Salona 41 Deep draft

Sailboat specifications

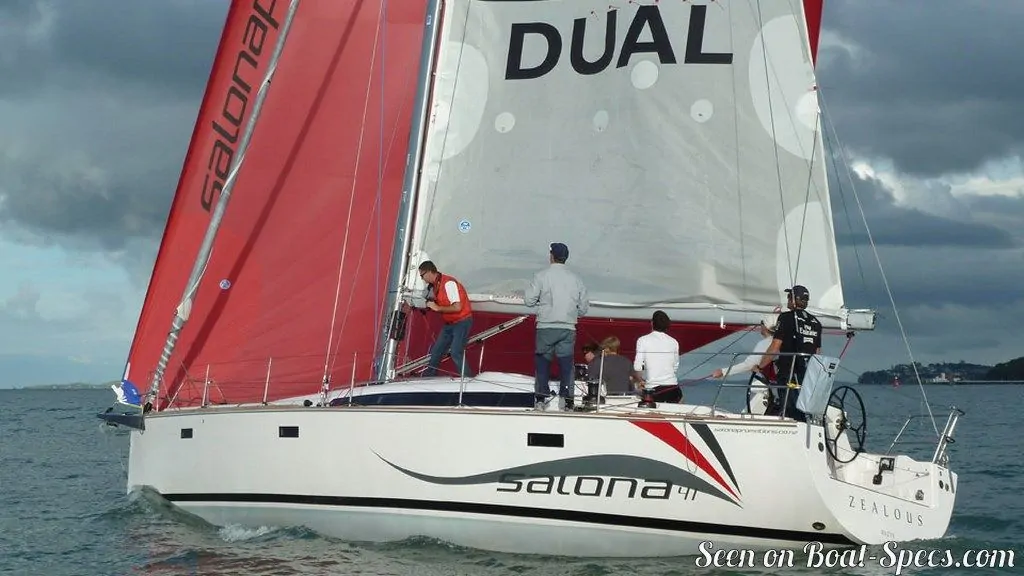

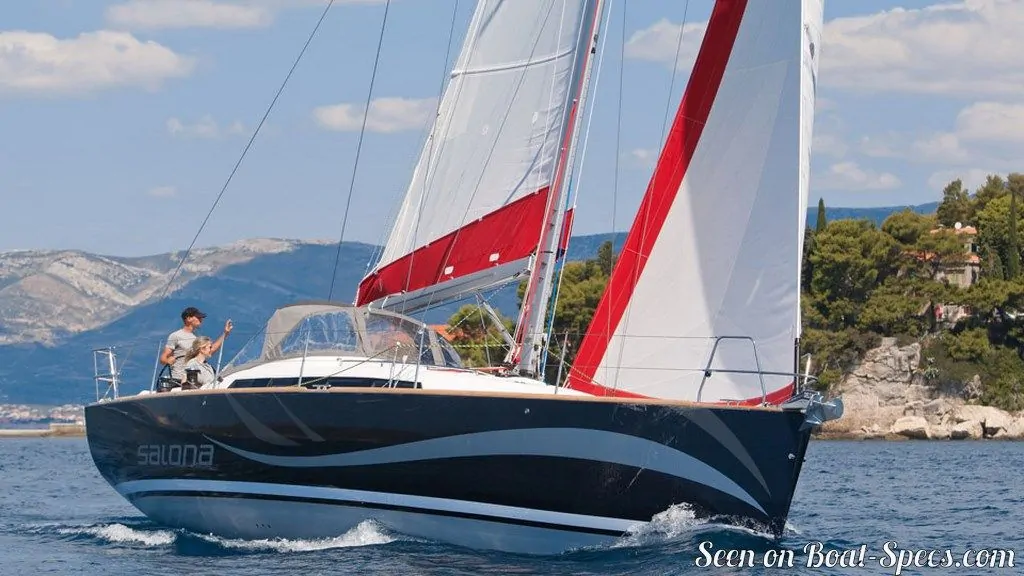

The Salona 41 is a 41’ (12.5m) cruiser-racer sailboat designed by J&J Design (Slovenia). She is built since 2010 by AD Boats (Croatia). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind.

The Salona 41 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Salona 41's main features

Model
Salona 41
Version
Deep draft
Hull type
Monohull
Category
Offshore cruiser-racer sailboat
Sailboat builder
Sailboat designer
Sailboat range
Country
Croatia
Construction
GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame
First built hull
2010
Last built hull
Still in production
Appendages
Keel : fin with bulb
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
About
209 000
 (2020)

Salona 41's main dimensions

Hull length
41’12.5 m
Waterline length
37’ 7”11.45 m
Beam (width)
12’ 7”3.84 m
Draft
8’ 10”2.68 m
Light displacement (MLC)
16424 lb7450 kg
Ballast weight
5291 lb2400 kg

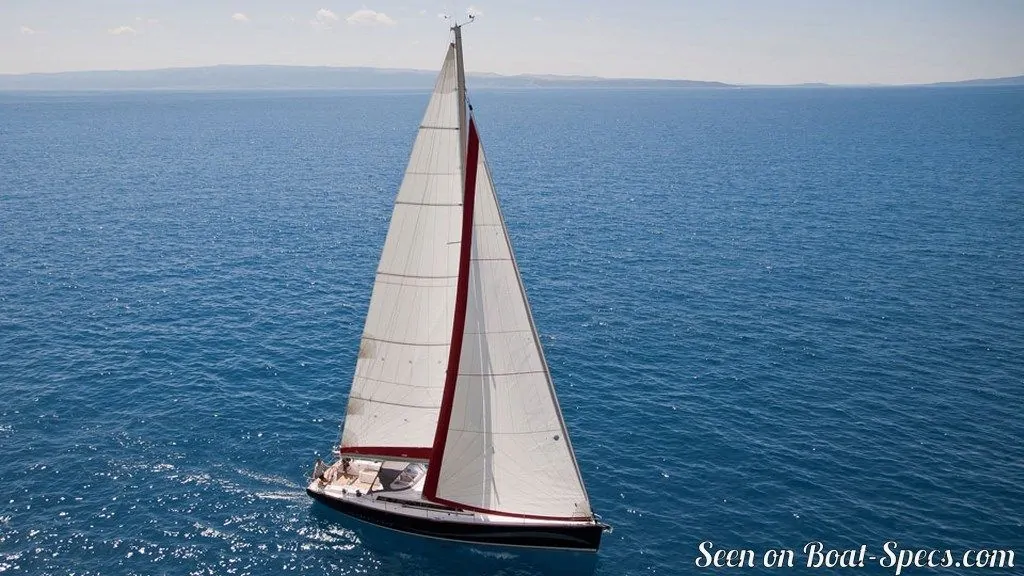

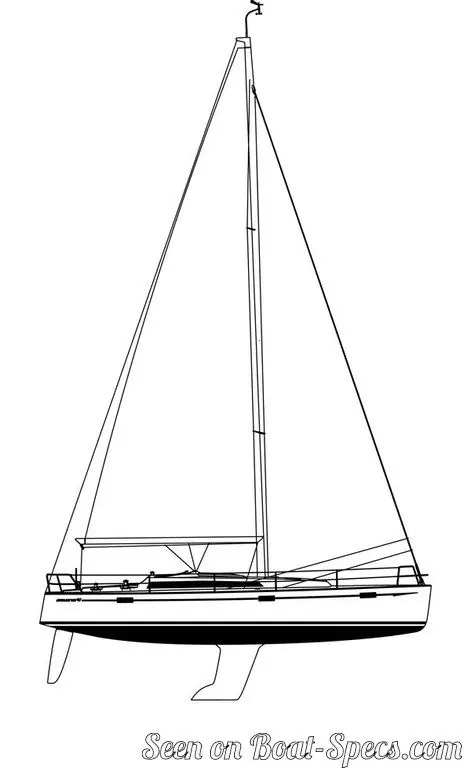

Salona 41's rig and sails

Upwind sail area
1196 ft²111.1 m²
Downwind sail area
1943 ft²180.5 m²
Mainsail area
576 ft²53.5 m²
Genoa area
620 ft²57.6 m²
Symmetric spinnaker area
1367 ft²127 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
51’ 10”15.8 m
J
 iFore triangle base (from mast foot to bottom of forestay)
15’ 8”4.8 m
P
 iMainsail hoist measurement (from tack to head)
51’ 2”15.6 m
E
 iMainsail foot measurement (from tack to clew)
19’5.78 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars (carbon fiber spars as an option)

Salona 41's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
314 ft²/T29.13 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
509 ft²/T47.32 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
141
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
32 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
8.21 knots

Salona 41's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
40 HP
Fuel type
Diesel
Fuel tank capacity
58.1 gal220 liters

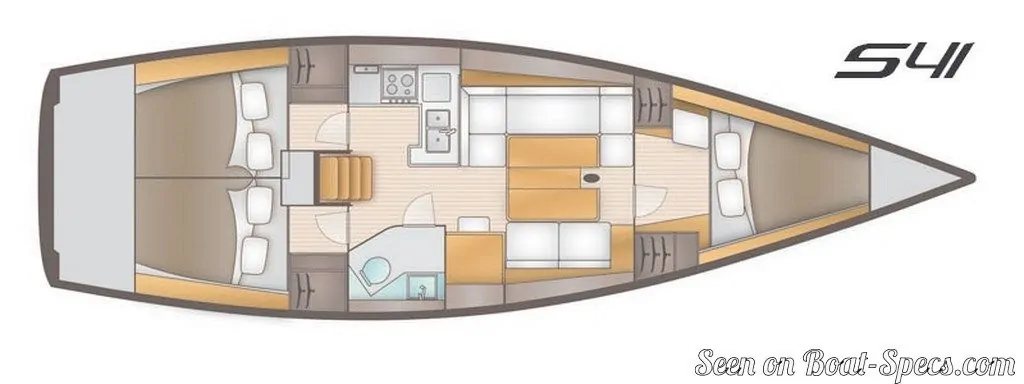

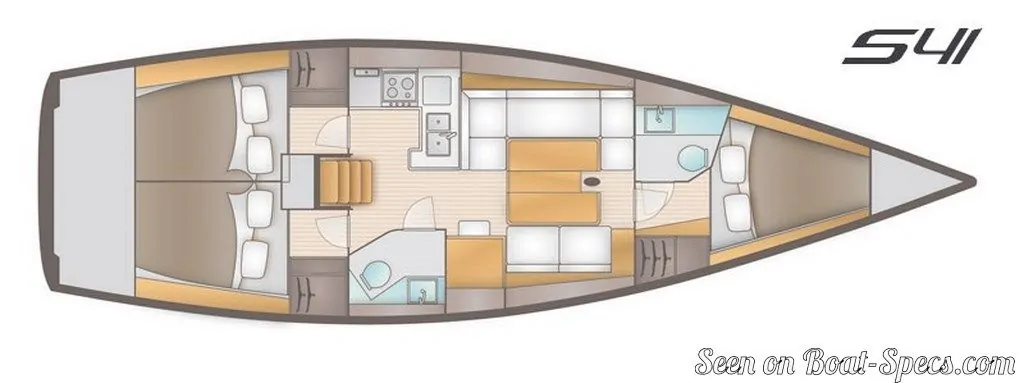

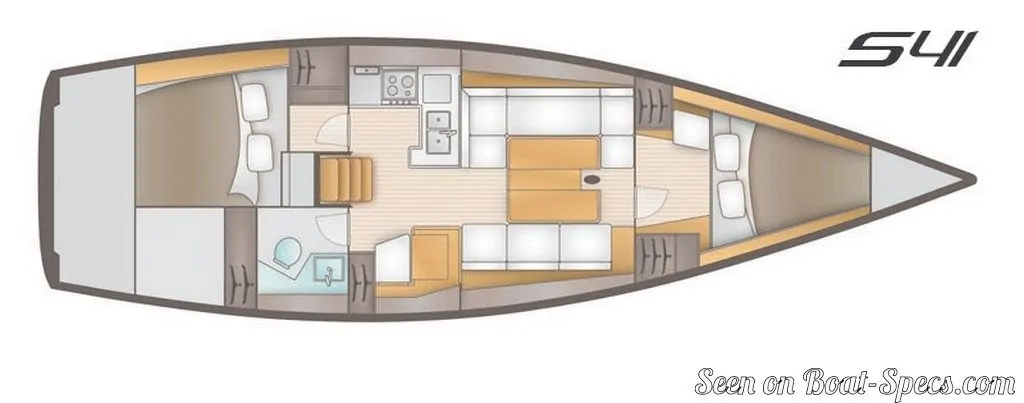

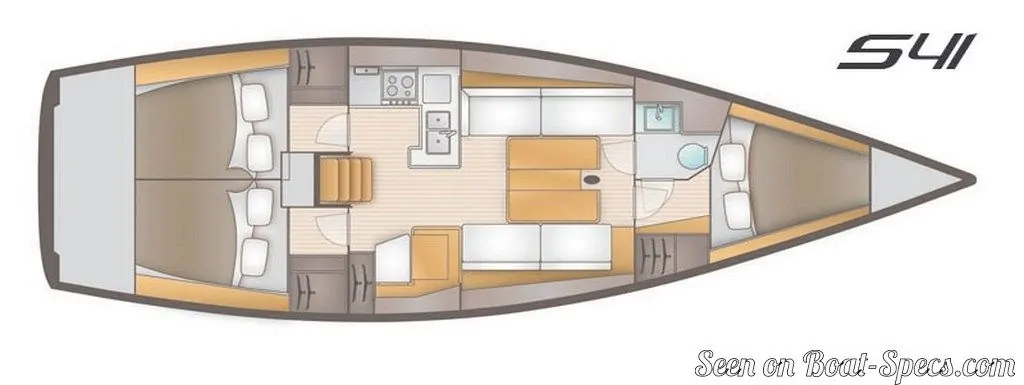

Salona 41's accommodations and layout

Cockpit
Open aft cockpit
Cabin(s) (min./max.)
2 / 3
Berth(s) (min./max.)
4 / 8
Head(s) (min./max.)
1 / 2
Freshwater tank capacity
58.1 gal220 liters
Holding tank capacity
11.1 gal42 liters
Maximum headroom
6’ 5”1.95 m

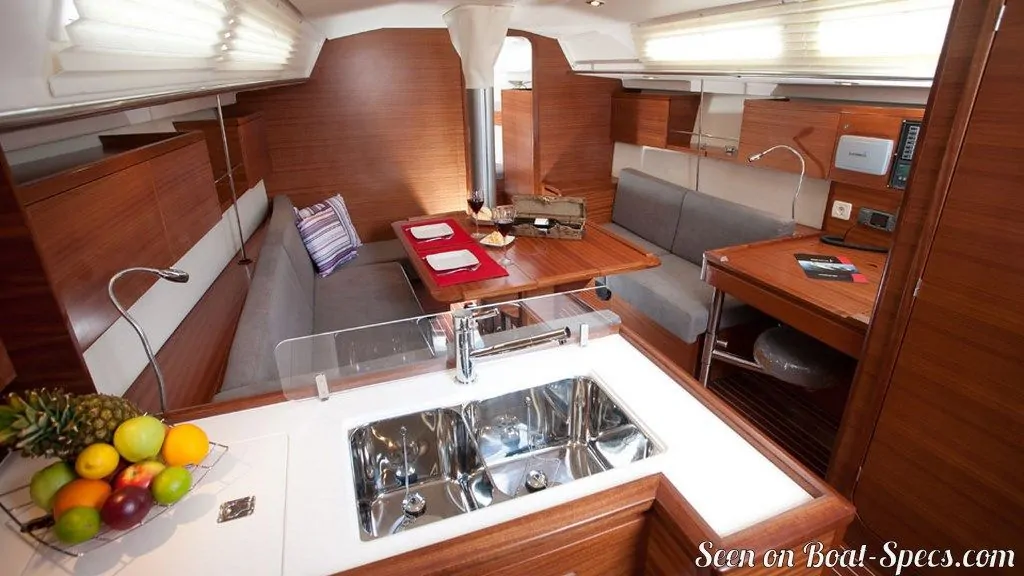

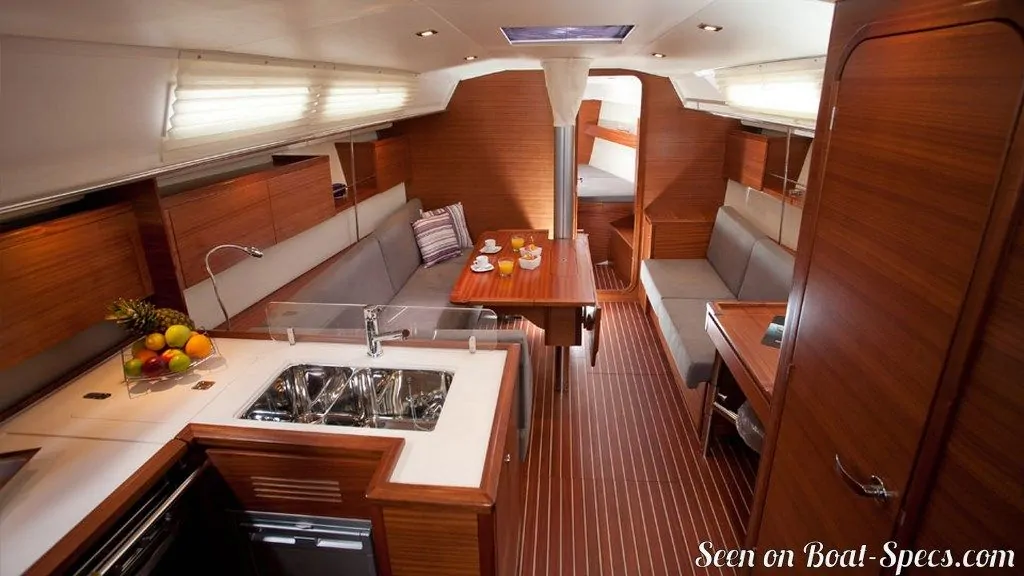

Salona 41's saloon

Maximum headroom
6’1.84 m
Saloon table length
3’ 11”1.2 m
Saloon table width
3’ 8”1.14 m
Berth length
7’ 4”2.22 m
Berth width
2’ 1”0.64 m

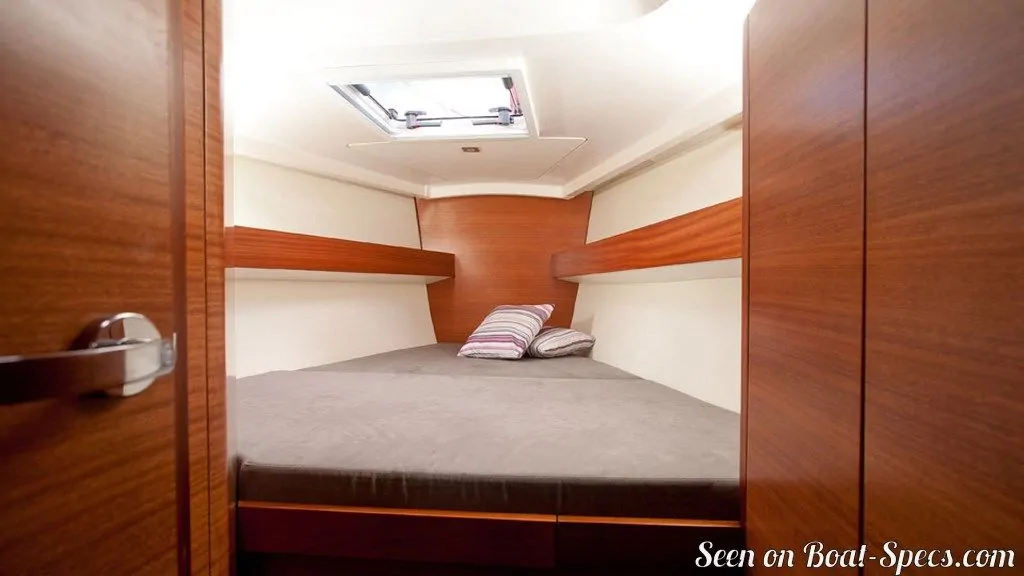

Salona 41's fore cabin

Maximum headroom
6’ 1”1.86 m
Berth length
6’ 11”2.1 m
Berth width
5’ 5”1.66 m

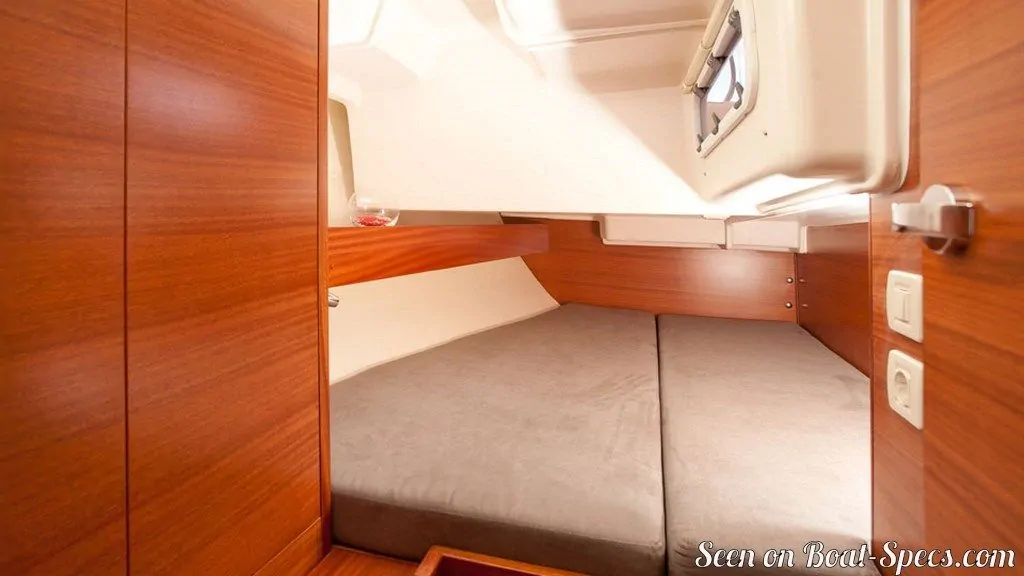

Salona 41's aft cabin

Maximum headroom
6’ 4”1.93 m
Berth length
6’ 8”2.04 m
Berth width
4’ 11”1.5 m
